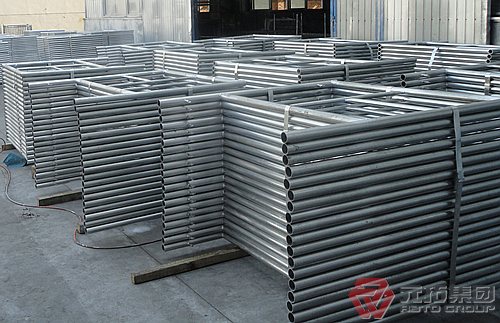

元拓集團的門式腳手架規格型號多種，也非常的有人性化，萬向輪的設計就是體現了這點。表層的電鍍鋅插銷是為了穩固連接斜拉桿和主架之間而設置的，能夠更精確地確保穩定性，堅韌整套門架的整體系統構架。剪刀式撐斜拉桿的設計度強硬性能非常穩定，并且承載力也相當?shù)淖吭絻?yōu)良。

元托的門式腳手架移動腳手架的規格型號具體如下：

產品名稱	立桿	副桿	產品名稱	立桿	副桿
762×1700mm八字門架	φ42×2.2mm	φ25×1.5mm	1219×1524mm門架	φ42×2.4mm	φ25×1.5mm
	φ42×2.0mm	φ25×1.5mm		φ42×2.2mm	φ25×1.5mm
	φ42×1.8mm	φ25×1.5mm		φ42×2.0mm	φ25×1.5mm
	/	/		φ42×1.8mm	φ25×1.5mm
914×914mm半架	φ42×2.2mm	φ25×1.5mm	1219×1700 mm門架	φ42×2.4mm	φ25×1.5mm
	φ42×2.0mm	φ25×1.5mm		φ42×2.2mm	φ25×1.5mm
	φ42×2.2mm	φ42×2.0mm		φ42×2.0mm	φ25×1.5mm
	φ42×2.4mm	φ25×1.5mm		φ42×1.8mm	φ25×1.5mm
914×1700mm門架	φ42×2.2mm	φ25×1.5mm	1219×1930mm門架	φ42×2.4mm	φ25×1.5mm
	φ42×2.0mm	φ25×1.5mm		φ42×2.0mm	φ25×1.5mm
	φ42×1.8mm	φ25×1.5mm		φ42×1.8mm	φ25×1.5mm
	φ42×2.0mm	φ42×2.0mm		/	/
914×1700mm梯架	φ42×2.2mm	φ25×1.5mm	1219×1219m半架	φ42×2.0mm	φ25×1.5mm
	φ42×2.2mm	φ42×2.2mm		φ42×2.2mm	φ25×1.5mm
1219×914mm半架	φ42×2.0mm	φ42×2.0mm	1219×1700mm梯架	φ42×2.0mm	φ25×1.5mm
	φ42×1.8mm	φ42×1.8mm		φ42×1.8mm	φ25×1.5mm
	φ42×2.2mm	φ42×2.0mm		φ42×2.2mm	φ42×2.0mm
			1219×1930mm梯架	φ42×2.0mm	φ25×1.5mm
				φ42×2.2mm	φ42×2.0mm
				φ42×2.0mm	φ25×1.5mm
